      SGM35PA12A8TFD Module offers the optimum performance for Auxiliary Inverters, Air Conditioning and Motor Drives.


Main feature
  • 35A, 1200V, VCE(sat)(typ.) =1.9V@IC=35A

  • VCE(sat) with positive temperature coefficient

  • High short circuit capability

  • Low switching loss

  • Isolated using DBC technology

  • With NTC


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SGM35PA12A8TFD A8 SGM35PA12A8TFD / Carton

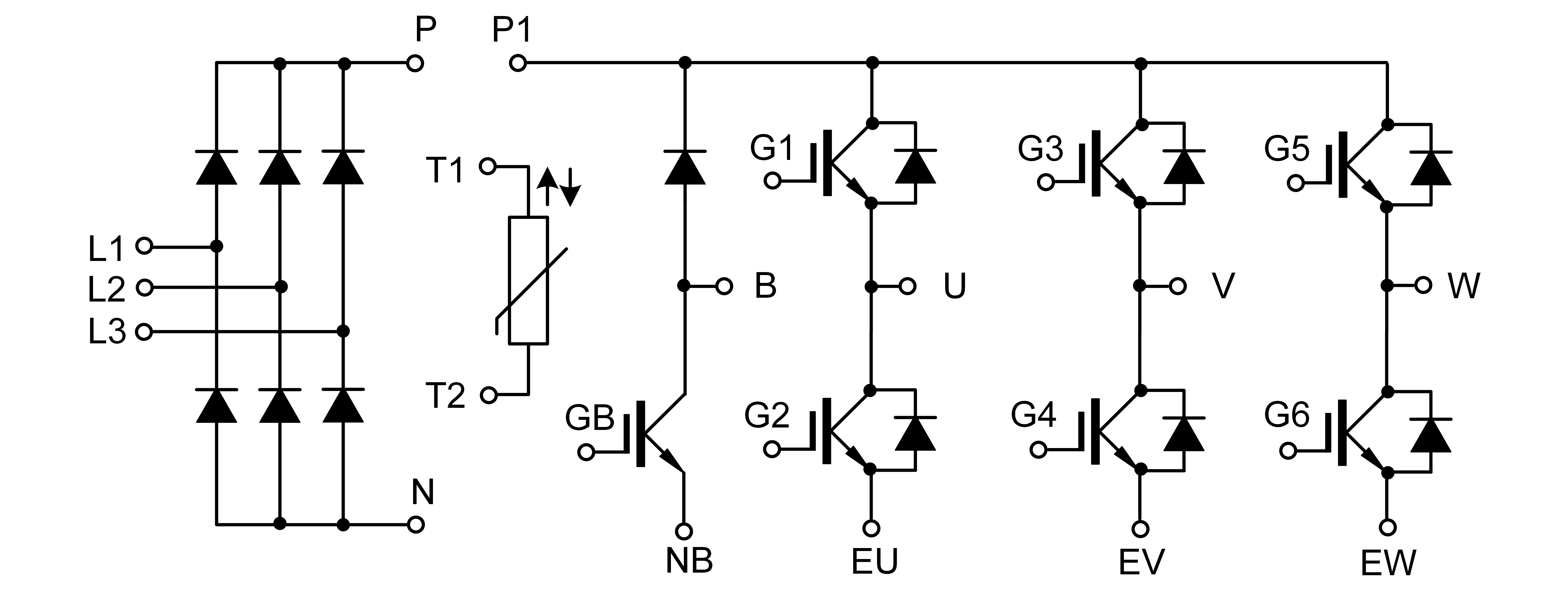

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SGM35PA12A8TFD 0 1970-01-01 SGM35PA12A8TFD Brief Datasheet
Packages
