    SD20M60AC8 is a 3-phase brushless DC motor driver with high integration and high reliability for medium power inverter driving such as air condition, dishwasher, and industrial sewing machine. It has embedded six low-loss IGBT and three high-speed half-bridge gate drivers with high voltage.

    The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SD20M60AC8 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


Main feature
  • Built-in six low-loss 600V/20A IGBT;

  • Built-in high-voltage gate driver;

  • Built-in under voltage, over temperature and over current protections;

  • Built-in bootstrap diode;

  • Compatible with 3.3V, 5V MCU interface, active high;

  • Three independent negative DC terminal for inverter current detection;

  • Alarm signal: for low-side under voltage and short circuit protections;

  • Package in DBC design with low thermal resistance;

  • Insulation level: 2500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

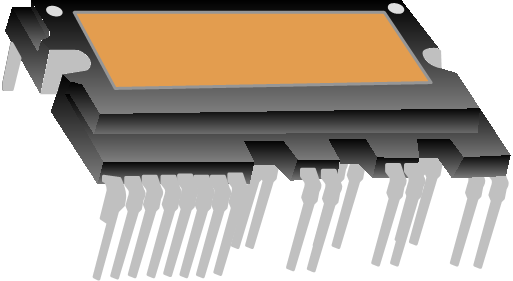

SD20M60AC8 DIP-27H SD20M60AC8 Halogen free Tube
Block Diagram

SD20M60AC8  (1440&720)PS 中英文同.png

Documents
title Types of Size (KB) date Download the latest English version
SD20M60AC8 0 1970-01-01 SD20M60AC8 Brief Datasheet
