    SDM10C60TA5B1 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator. It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage.

    The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SDM10C60TA5B1 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


Main feature
  • Built-in low-loss 600V/10A IGBTs

  • Built-in high-voltage integrated circuit of gate driver

  • Built-in under voltage protections, over current protection and temperature output

  • Built-in shut-down input

  • Built-in inter-lock function

  • Built-in bootstrap diode with current limiting resistor

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminals for inverter current detection

  • Isolation rating: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM10C60TA5B1 DIP-25E SDM10C60TA5B1 Halogen free Tube
Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SDM10C60TA5B1 0 1970-01-01 SDM10C60TA5B1 Brief Datasheet

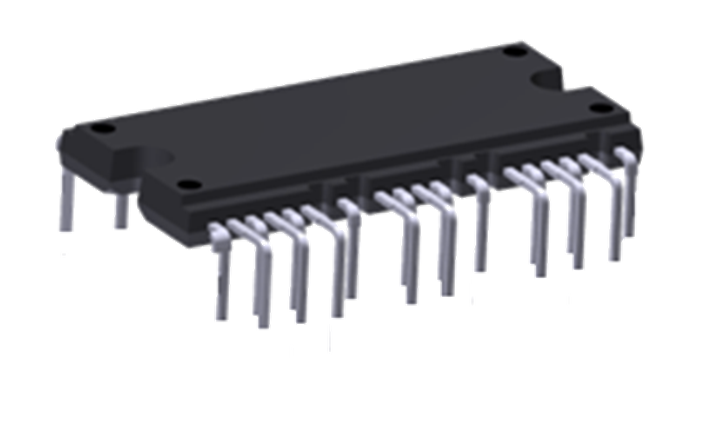

Packages
