    The SLP74LVC3G14 is triple inverting buffers with Schmitt trigger input.

    The SLP74LVC3G14 is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. Schmitt trigger action at the inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature
  • 5V tolerant input/output for interfacing with 5V logic

  • Balanced propagation delays

  • CMOS low power consumption

  • ±24mA output driver (VCC=3.0V)

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC3G14JWTR VSSOP-8-100-0.5 3G14 Halogen free Tape&Reel

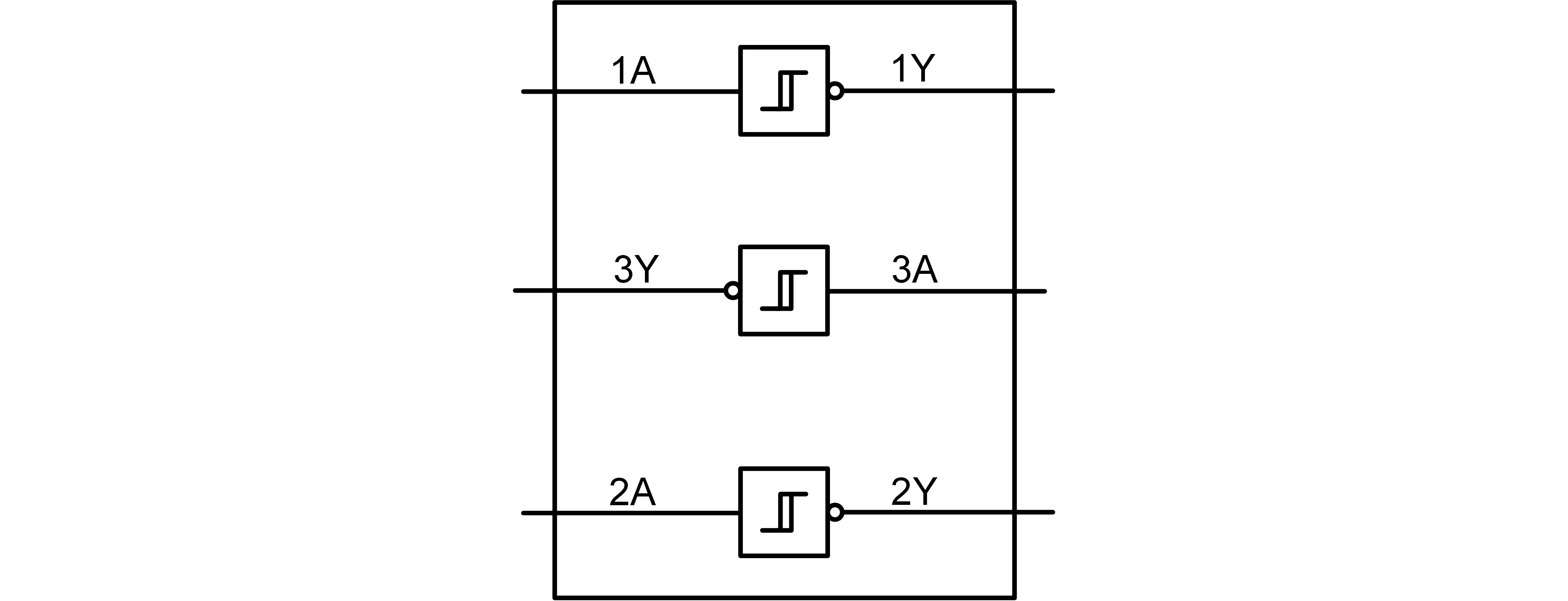

Block Diagram

SLP74LVC3G14 中英同(4500&1725).png
