    The SLP74AHC1G08 are Si-gate CMOS devices.

    The SLP74AHC1G08 provide a two-input AND function.


Main feature
  • Balanced propagation delays

  • CMOS input levels

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100 mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74AHC1G08KBTR SOT-23-5L 1G08 Halogen free Tape & Reel
SLP74AHC1G08KMTR SOT-353-5L S7 Halogen free Tape & Reel

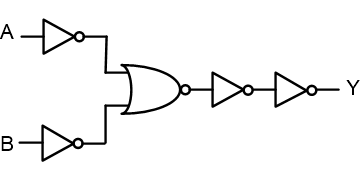

Block Diagram

SLP74AHC1G08 中英文  (360&180).png

Documents
title Types of Size (KB) date Download the latest English version
SLP74AHC1G08 0 1970-01-01 SLP74AHC1G08 Brief Datasheet
