   The SLP74HC14 is a high-speed Si-gate CMOS device.

   The SLP74HC14 contains six independent inverters. Each circuit functions as an independent inverter. Because of the Schmitt-Trigger action, the inverters are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.


Main feature
  • All inputs have Schmitt-trigger actions

  • CMOS level input

  • ESD protection:

    HBM Exceeds 2000V

    CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74HC14EB SOP-14-225-1.27 74HC14 Halogen free Tube
SLP74HC14EBTR SOP-14-225-1.27 74HC14 Halogen free Tape & Reel
SLP74HC14JY TSSOP-14-225-0.65 74HC14 Halogen free Tube
SLP74HC14JYTR TSSOP-14-225-0.65 74HC14 Halogen free Tape & Reel

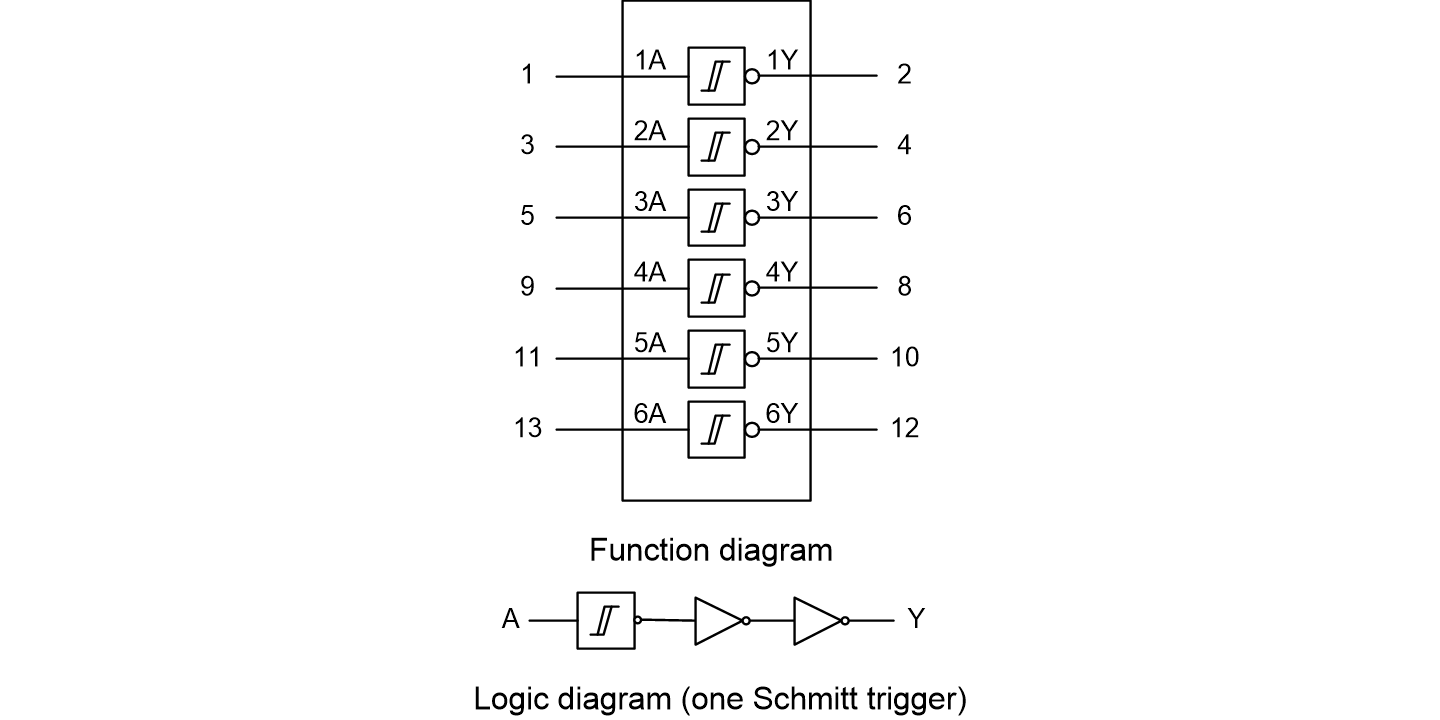

Block Diagram

SLP74HC14英文  (1440&720).png

Documents
title Types of Size (KB) date Download the latest English version
SLP74HC14 0 1970-01-01 SLP74HC14 Brief Datasheet
