SD8512C
SYNCHRONOUS RECTIFIER CONTROLLER IC WITH BUILT-IN POWER MOSFET

    SD8512C is a synchronous rectifier (SR) controller IC with built-in power MOSFET

    SD8512C is highly integrated IC with few peripheral components, and simplifying system design. It is suitable for discontinuous conduction mode and boundary conduction mode.

    SD8512C is optimized for 5V output voltage, the output can be used as power supply directly.

Main feature
  • Built-in power MOSFET

  • Up to 40V drain-source breakdown voltagew

  • Minimum off time protection

  • Up to 100KHz operation frequency

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SD8512CTR SOP-8-225-1.27 SD8512C Halogen free Tape & Reel
SD8512C SOP-8-225-1.27 SD8512C Halogen free Tube

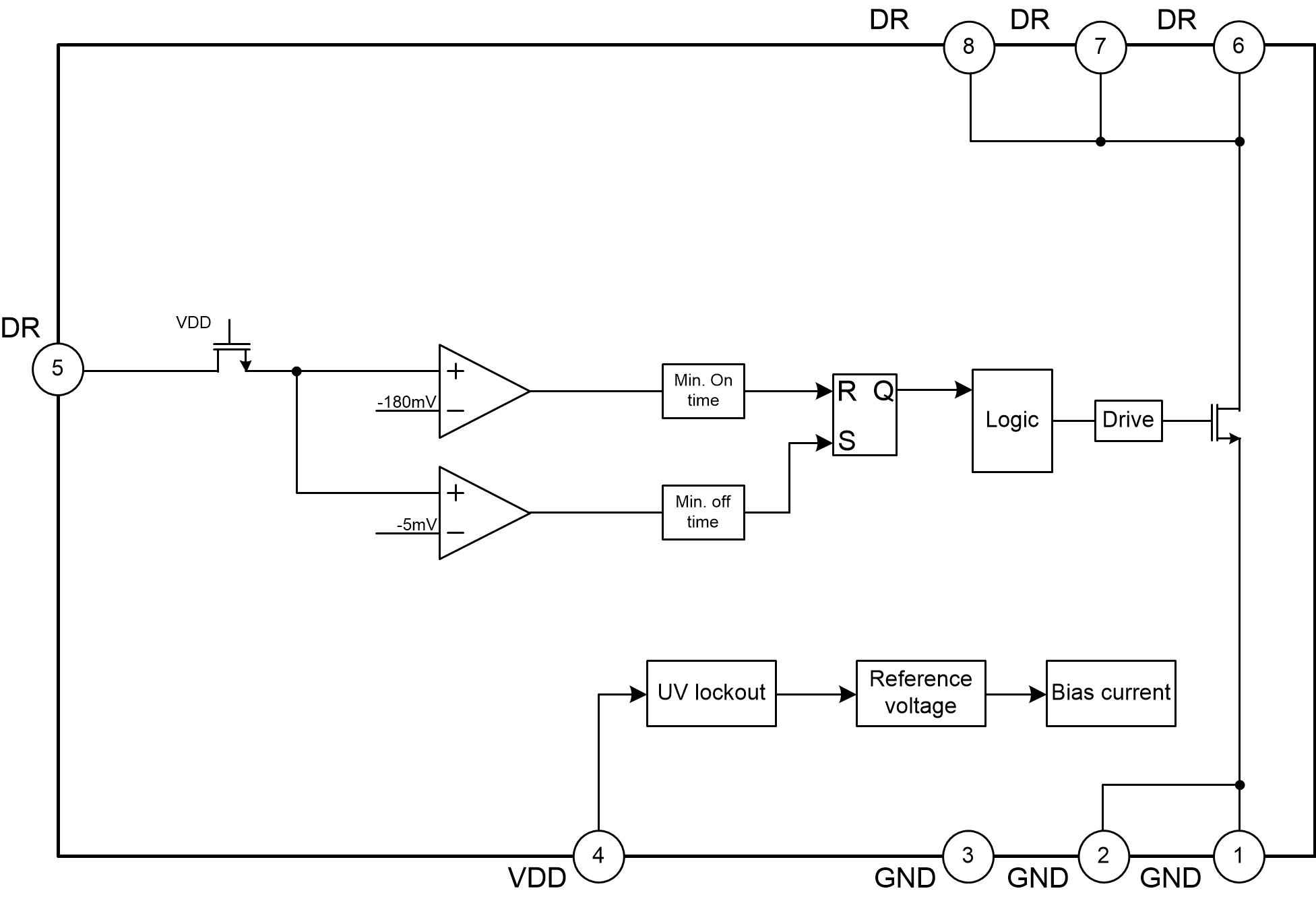

Block Diagram
